Mil Std 810g Cameras – Industrial Video Borescopes designed and tested for use in hazardous environments. Great for safely finding cracks, corrosion, and foreign object debris (FOD) in pipes and gas valves in petroleum refineries. Inspect gas tanks for contraband. Safer viewing in all your explosive environments and hazardous locations!
Because the light source is Cold Fiber Optic Illumination, with the source in the handle not the tip, our Video Borescopes provide for safer remote viewing. Our scope tips have 4-way articulation and some of the smallest diameters available, allowing you to see into some of the tightest spots.
MIL STD 810G Cameras / Explosion Proof Borescopes Key Features:
- Tested Under MIL-STD 810G method 511.6 (Explosive Environment)
- UL Certified for Class I Division 2 Hazardous Locations
- ATEX Certificate of Conformity for Group II Category 3 Equipment Intended for Use in Potentially Explosive Atmospheres Directive 2014/34/EU
- Aerospace Industry: Approved By F35 Tactical Fighter
- Working Length from 1.5 meters (4.9 ft) up to 10 meters (33 ft)
- Diameter: 3.0mm (0.11″) 4.0 mm (0.16”) or 6mm (0.24”), 8mm (0.314″)
- High-resolution CMOS Camera, with 90-degree FOV
- Large Integrated Display (5.0“/12.7 cm) with VGA 640×480 Resolution
- Built-in Digital Zoom
- 3-stage Adjustable LED Illumination
- Cold Fiber Optic Light in the Handle Means no Spark from LED in Explosive Environments

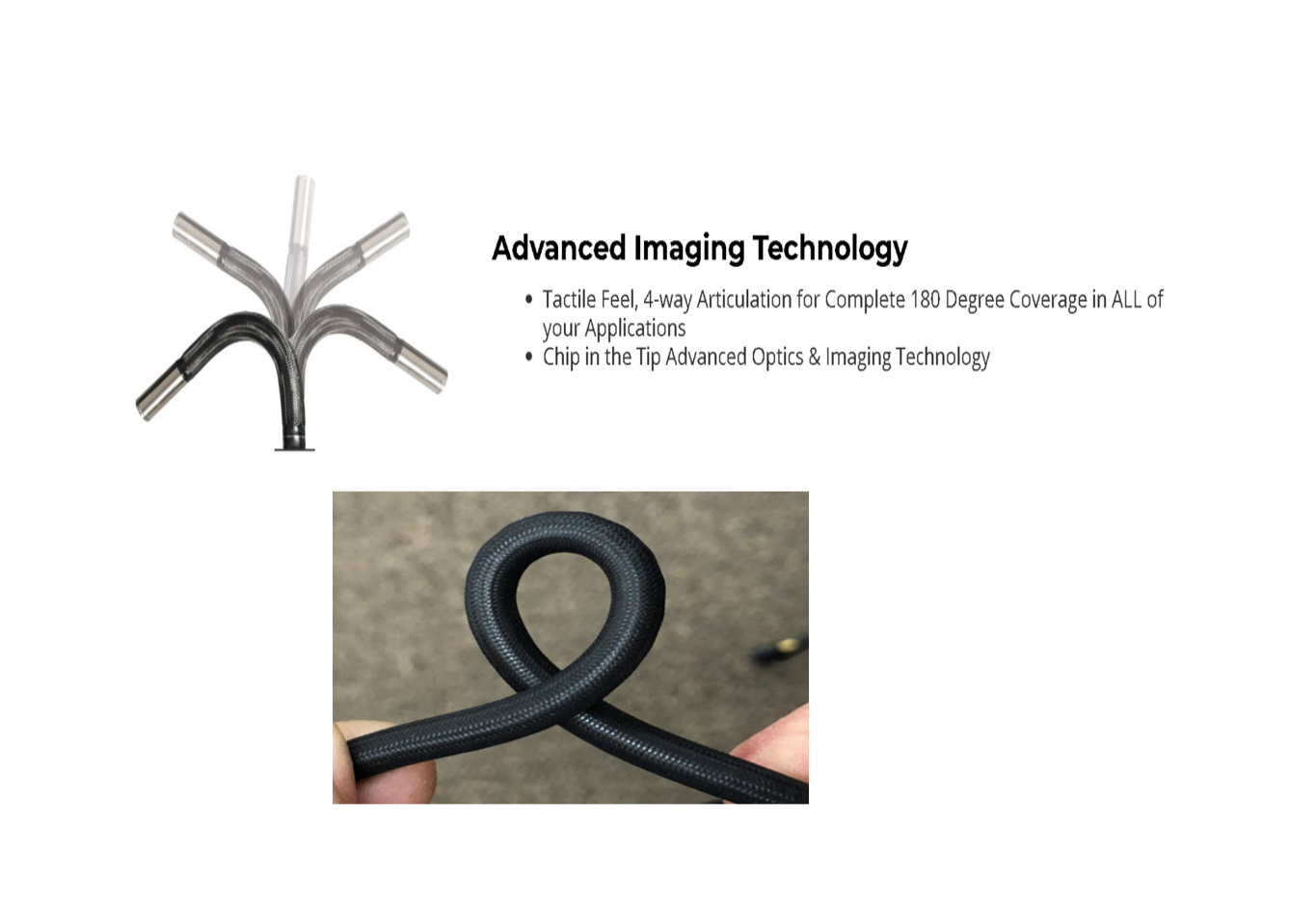

- 4 Way Tip Articulation
- Rechargeable 6-Hour Battery
- 32,000 Images or 500 hours of Video Can be Stored on 32GB SDHC Card
- Portable, Robust, Durable Set in a Hard Plastic Carrying Case. Looks Like a Roll-On Bag with Telescopic handles
- Made in USA
Explosion Proof Borescope Hazardous Locations Ratings:
Borescope Videoscope XT By I.T.S. Videoscopes
Hazardous Locations Rated Explosive Environment: UL, ATEX, MIL STD 810G
- Live 3.5 X Digital Zoom
- Capture Videos and Still Images
- High Resolution Imager
- Export Data to SD Card
- 5″ High Resolution TFT Display
- 6 Hour Rechargeable Battery Life
- 2 Batteries Included
- Ergonomic Articulation Controls
- IP54, IP55; IP56; IP57*, IP68*; * IP57, IP68: *Applies to the the insertion tube only
- Aerospace Approved: F35 Approved Videoscope
- Automotive: Approved by a major Automobile manufacturer
